The pneumatic conveying system can customize the powder conveying device. The pneumatic conveying system includes air source and pipeline. The pipeline is suitable for conveying a variety of materials. The relationship between the inner diameter of the pipeline and the outer diameter of the material is established, so that a thrust zone is formed between the two adjacent materials in the pipeline. The pneumatic power source forms a thrust zone through the drive, and then drives the material through the thrust zone.

氣力輸送系統

Pneumatic conveying system

在物料輸送過程中，物料從一個位置輸送到另一個位置，通常是在真空環境中或通過壓縮空氣。初，物料可以放置在料倉中，然后將料倉放置與管道連接進行傳輸。包裝體與輸送管道緊密接觸，在輸送管道內通過壓縮空氣推動包裝體前進，從而實現物料的輸送。例如，裝有物料的料倉與管道連接，然后將物料其推入輸送管，在輸送管中，物料通過氣動壓力移動。如果以這種方式傳遞物料，需要很大的氣動力來克服物料與管道之間的摩擦，在轉彎位置，料倉容易堵塞，無法進一步進行，從而影響后續物料的輸送。

In the process of material transportation, materials are transported from one location to another, usually in a vacuum environment or through compressed air. Initially, the material can be placed in the silo, and then the silo can be placed and connected with the pipeline for transmission. The packaging body is in close contact with the conveying pipeline, and the packaging body is pushed forward by compressed air in the conveying pipeline, thus realizing the transportation of materials. For example, the silo containing material is connected with the pipeline, and then the material is pushed into the conveying pipe. In the conveying pipe, the material moves through the pneumatic pressure. If the material is transferred in this way, a large amount of aerodynamic force is needed to overcome the friction between the material and the pipeline. At the turning position, the silo is easily blocked and cannot be further carried out, thus affecting the subsequent material transportation.

氣力輸送系統

Pneumatic conveying system

負壓氣力輸送系統，物料可依次輸送，且物料直接輸送，無需封裝在料倉中。其中，氣力輸送系統提供輸送管道，在輸送管道的末端設有鼓風機，通過鼓風機將物料吹輸送管道的另一端。此外，需要控制輸送管的直徑，使物料的周向側能有足夠的氣流帶動，使物料前進。

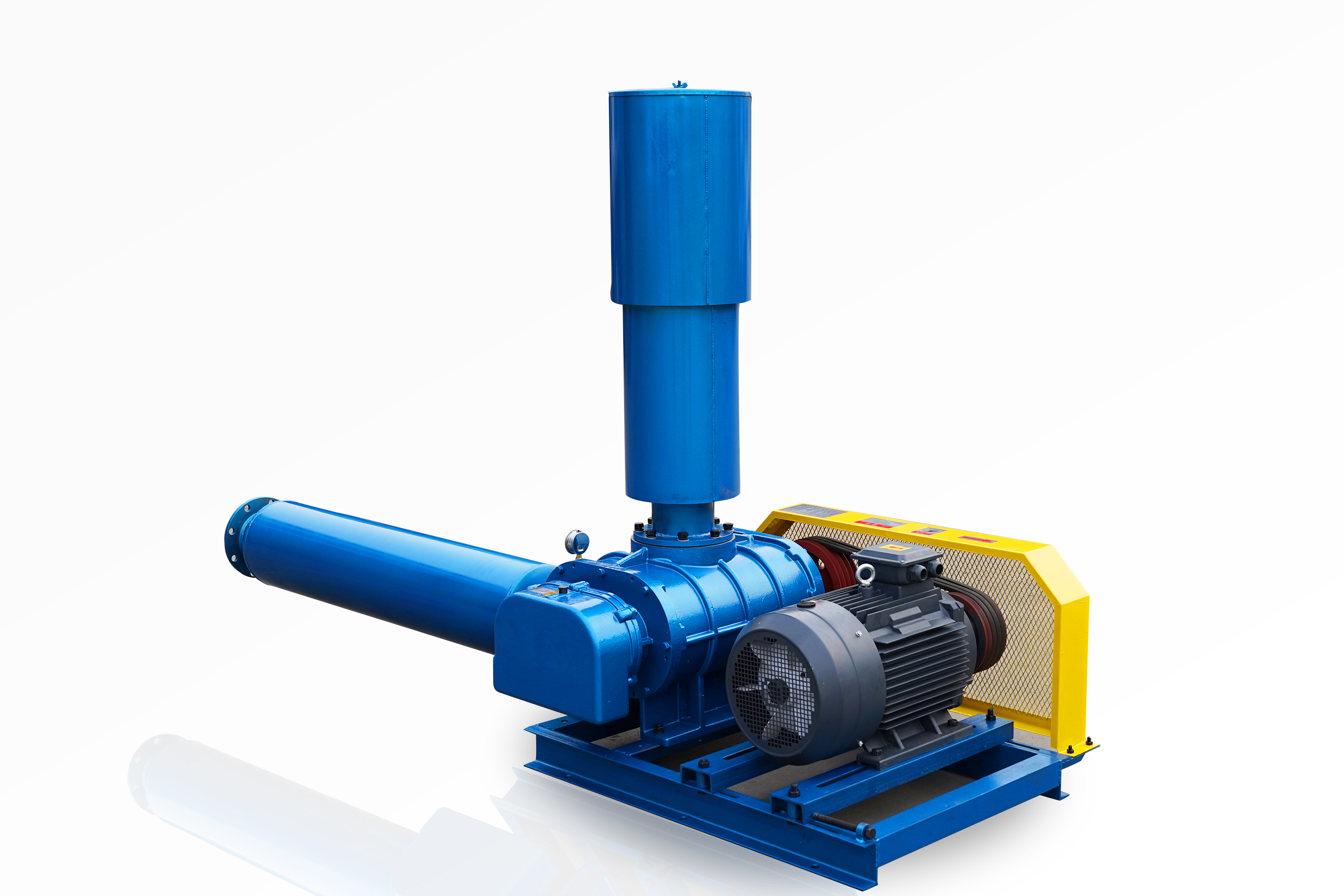

Negative pressure pneumatic conveying system, the materials can be transported in turn, and the materials can be directly transported without packaging in the silo. Among them, the pneumatic conveying system provides a conveying pipeline, and a blower is set at the end of the conveying pipeline to blow the material to the other end of the conveying pipeline through the blower. In addition, it is necessary to control the diameter of the conveying pipe so that the circumferential side of the material can be driven by enough air flow to advance the material.

氣力輸送系統

Pneumatic conveying system

在實際使用中，當物料被送入輸送管道后，物料立即被鼓風機從0的速度突然加速到一個非常快的速度，然后沿著輸送管道輸送，使物料中的物料突然振動，引起終結構的偏差，另一方面，由于輸送方式主要依靠物料外壁與輸送管道內壁之間的大間隙，讓鼓風機以大功率向前供電帶動物料，使輸送管道內可容納多個物料同時輸送，但問題是，物料與相鄰物料之間的距離很難維持，因?yàn)殡x鼓風機越遠，風力就越小。換句話說，處于前方位置的物料接收的功率較小，處于后方位置的物料接收的功率較大，如果兩個物料之間的間距過短，后一個物料很容易趕上前一個物料，尤其是在彎頭的位置。

In practical use, when the material is sent into the conveying pipe, the material is immediately accelerated from 0 to a very fast speed by the blower, and then transported along the conveying pipe, causing the material in the material to suddenly vibrate, causing the final structural deviation. On the other hand, because the conveying method mainly depends on the large gap between the outer wall of the material and the inner wall of the conveying pipe, so that the blower can power forward with high power to carry animal material, The conveying pipeline can accommodate multiple materials to be transported at the same time, but the problem is that the distance between materials and adjacent materials is difficult to maintain, because the farther away from the blower, the smaller the wind. In other words, the material in the front position receives less power, while the material in the rear position receives more power. If the distance between the two materials is too short, the latter material can easily catch up with the former material, especially at the elbow position.
