氣力輸送系統利用氣流沿管路輸送散粒物料的裝置。有吸送式、壓送式和混合式三種。其工作原理是利用氣流的動能使散粒物料呈懸浮狀態隨氣流沿管道輸送。廣泛應用于食品、化工、醫藥、橡塑等行業。
Pneumatic conveying system is a device that uses air flow to transport bulk materials along the pipeline. There are three types: suction type, pressure type and mixed type. Its working principle is to use the kinetic energy of the air flow to make the bulk materials suspended and transported along the pipeline with the air flow. It is widely used in food, chemical, pharmaceutical, rubber and plastic industries.
氣力輸送方式
Pneumatic conveying mode
1、按照每單位體積的氣體載體中所攜帶的粉體的質量多少可分為：稀相氣力輸送和濃相氣力輸送，而濃相氣力輸送又分為濃相動壓氣力輸送和濃相靜壓栓流氣力輸送。
1. According to the mass of powder carried in the gas carrier per unit volume, it can be divided into dilute phase pneumatic conveying and dense phase pneumatic conveying, while the dense phase pneumatic conveying can be divided into dense phase dynamic pressure pneumatic conveying and dense phase static pressure plug flow pneumatic conveying.
2、按照輸送方式氣力輸送粉狀物料的系統形式大致分為正壓氣力輸送、負壓氣力輸送。
2. According to the conveying mode, the system form of pneumatic conveying of powdery materials can be roughly divided into positive pressure pneumatic conveying and negative pressure pneumatic conveying.
氣力輸送方式詳解
Detailed explanation of pneumatic conveying mode
①吸送式。抽風機啟動后，整個系統呈一定的真空度，在壓差作用下空氣流使物料進入吸嘴，并沿輸料管送卸料處的分離器內,物料從空氣流中分離后由分離器底卸出,氣流經除塵器凈化后再經消聲器排入大氣。優點是供料簡單，能從數處同時吸取物料。但輸送距離短，生產率低。密封性要求高。
① Suction type. After the exhaust fan is started, the whole system assumes a certain degree of vacuum. Under the effect of pressure difference, the air flow makes the material enter the suction nozzle, and is sent to the separator at the discharge place along the material delivery pipe. The material is separated from the air flow and discharged from the bottom of the separator. The air flow is purified by the dust collector and then discharged into the atmosphere through the muffler. The advantage is that the material supply is simple, and the material can be absorbed from several places at the same time. However, the conveying distance is short and the productivity is low. High sealing requirements.

吸送式氣力輸送系統
Suction pneumatic conveying system
②壓送式。羅茨鼓風機將空氣壓入輸送管，物料從供料器供入，空氣和物料的混合物沿輸料管被壓送卸料處,物料經分離器后卸出,空氣經除塵器凈化后排入大氣。特點與吸送式相反,可同時將物料輸送到幾處,輸送距離較長，生產率較高，但結構復雜。

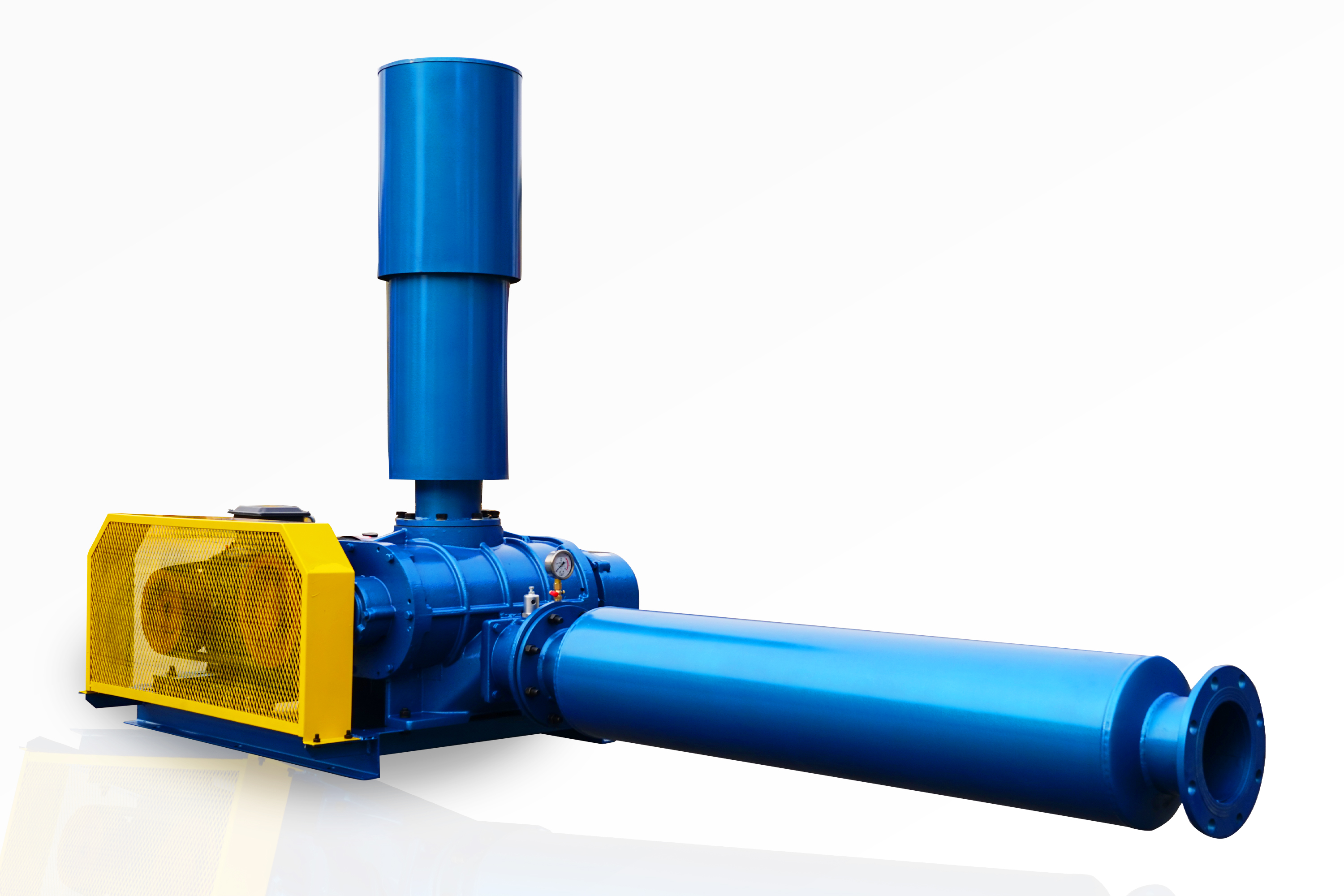

② Press type. Roots blower will press air into the conveying pipe, and materials will be supplied from the feeder. The mixture of air and materials will be pressed to the discharge place along the conveying pipe, and the materials will be discharged after the separator, and the air will be discharged into the atmosphere after being purified by the dust collector. Contrary to the suction type, it can transport materials to several places at the same time, with a long conveying distance, high productivity, but complex structure.
壓送式氣力輸送系統
Pressure pneumatic conveying system
③混合式。為上述兩種形式的組合。
③ Hybrid. Is a combination of the above two forms.
吸送式、壓送式相結合氣力輸送系統
Combined pneumatic conveying system of suction and pressure
氣力輸送系統與機械式連續輸送裝置相比，其特點是：物料在輸送過程中完全密閉，受氣候和環境的影響小，工人工作條件好,物料不致受潮、污損或混入雜質，設備簡單,結構緊湊，布置靈活，占地較小，設備費用低，可同時進行某些工藝（如粉碎、烘干、分級）作業，易于集中控制，可實現自動化，提高輸送能力。除易碎、粘附性強、磨琢性大、有腐蝕性和易起化學變化的物料需特殊處理外，一般松散物料均可輸送。
Compared with the mechanical continuous conveying device, the pneumatic conveying system has the following characteristics: materials are completely closed during the conveying process, less affected by the climate and environment, good working conditions for workers, materials will not be affected by moisture, dirt or impurities, simple equipment, compact structure, flexible layout, small floor space, low equipment cost, and can carry out some processes (such as crushing, drying, grading) at the same time, easy to centralized control, and can achieve automation, Improve the conveying capacity. In addition to the materials that are fragile, adhesive, abrasive, corrosive and prone to chemical change, which need special treatment, generally loose materials can be transported.
缺點是能耗較大，對物料的塊度、粘性和濕度有一定限制，風機噪聲大，輸送磨削性物料時，管道易磨損。為克服上述缺點，正在發展一種靜壓式輸送裝置。其基本原理是在輸送管中形成許多彼此相間的料栓和氣栓，用空氣壓力推送料栓前進以達到輸送的目的。
The disadvantage is that the energy consumption is large, and there are certain restrictions on the size, viscosity and humidity of materials. The fan noise is large, and the pipeline is easy to wear when conveying abrasive materials. In order to overcome the above shortcomings, a hydrostatic conveying device is being developed. Its basic principle is to form many material plugs and air plugs in the conveying pipe, and push the material plug forward with air pressure to achieve the purpose of conveying.
此外,還有將氣流充入粉狀物料中,使物料流動性好而便于輸送的空氣輸送斜槽氣力輸灰系統裝置屬于密相中壓氣力輸送，適用于不易破碎顆粒、粉料物料的輸送。
In addition, there is also an air conveying chute pneumatic ash conveying system device that fills the air flow into the powder material to make the material flow well and easy to transport. The device belongs to dense phase medium pressure pneumatic conveying, and is applicable to the transportation of non-fragile particles and powder materials.
